Six-Hole Locator Suction Cup

The six-hole hole locator suction cup is a versatile and practical tool that is widely used in various work scenarios that require precise positioning and hole opening. It is designed to provide users with reduce convenience and precision, and can play a unique role both in home decoration and professional construction.

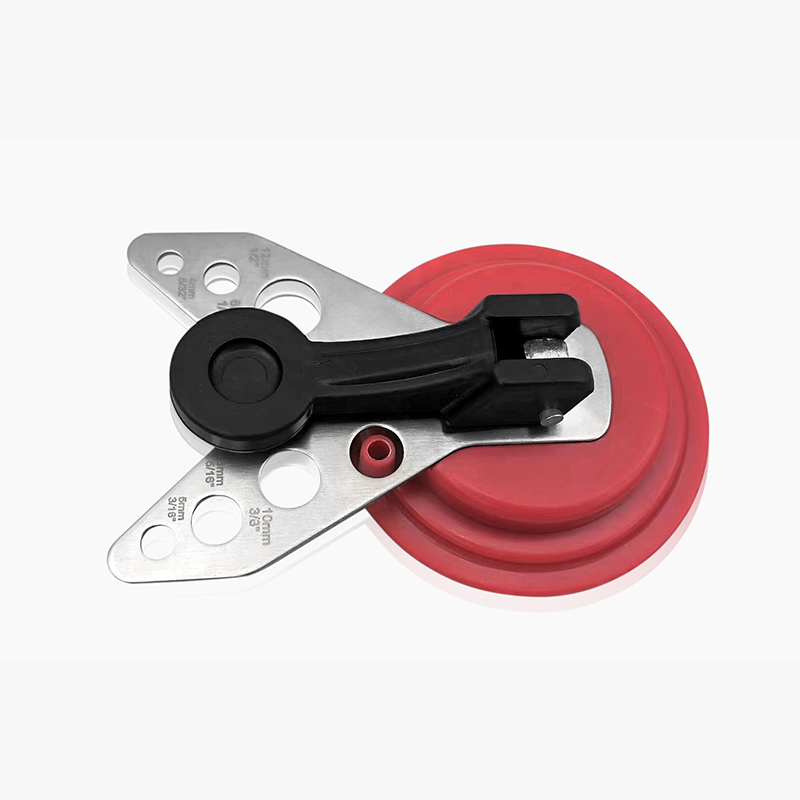

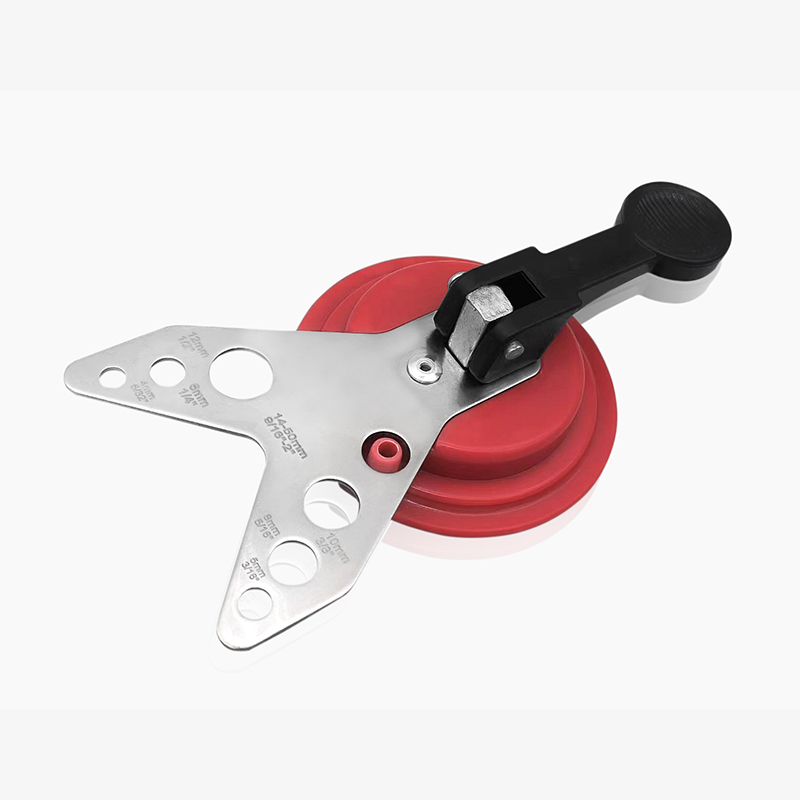

This six-hole hole locator suction cup consists of several key parts, mainly including suction cups, metal positioning plates and plastic brackets. Its exquisite design and powerful functions ensure stable positioning and precise hole opening on various materials.

1. Suction cup: The red suction cup part is made of high-strength rubber material with good adsorption and wear resistance. It is designed to be firmly attached to smooth surfaces such as tiles, glass and marble to prevent sliding during the hole opening process.

2. Metal positioning plate: The positioning plate is made of high-quality stainless steel material, which is durable and not easy to rust. There are six holes of different sizes on the plate, namely 6mm, 8mm, 10mm, 12mm, 16mm and 32mm, which can meet the needs of opening holes of different sizes. The position and spacing of these holes are precisely calculated to ensure high accuracy during repeated use.

3. Plastic bracket: The black plastic bracket is used to connect the suction cup and the positioning plate. It is made of high-strength plastic material and has good durability and stability. The bracket is simple and practical in design and can effectively support and fix the entire device.

The material selection and manufacturing process of the six-hole perforated locator suction cup are the key to ensuring its performance and durability. The high-strength rubber material used in the suction cup part not only has good adsorption capacity, but also can resist various external environmental influences such as high temperature, low temperature and humidity. The stainless steel positioning plate provides outstanding corrosion resistance and mechanical strength to maintain its shape and function for a long time.

During the manufacturing process, each component undergoes strict quality control and testing to ensure its accuracy and consistency. For example, the manufacturing process of the suction cup includes injection molding and post-processing to ensure its smooth surface, free of bubbles and impurities. The stainless steel positioning plate is laser cut and polished to ensure its smooth edges and precise apertures.

Using the six-hole hole locator suction cup is very simple, just follow these steps:

1. Clean the surface: First, make sure the work surface is clean and flat. Wipe the tile, glass or marble surface with a clean cloth or paper towel to remove dust and impurities to improve the adhesion of the suction cup.

2. Install the suction cup: Place the suction cup where the hole needs to be opened, gently press the center of the suction cup to ensure that it is firmly attached to the surface. The position of the suction cup can be adjusted appropriately to ensure the accuracy of the hole opening position.

3. Select the hole diameter: According to the required hole diameter, select the corresponding hole position on the locating plate. Insert the drill bit of the electric drill into the selected hole, ensuring that the drill bit is in close contact with the hole wall.

4. Start drilling: Start the electric drill, slowly apply force, and drill along the selected hole position. The suction cup and the locating plate will maintain the stability of the electric drill and ensure the accuracy of the hole opening.

5. Complete the operation: After the drilling is completed, turn off the electric drill, gently pull up the suction cup, and remove the locator. Check the quality of the hole to ensure that it meets the requirements.

Our six-hole hole locator sucker is a well-designed and powerful tool suitable for a variety of scenarios requiring precise hole opening. Its high-quality materials and exquisite manufacturing process ensure the durability and reliability of the product, making it an ideal choice for both home and professional users.
